GYFTY53

0.00
0.00

产品描述

松套层绞式非金属加强芯普通铠装光缆(GYFTY53)

产品描述 Description

GYFTY53光缆的结构是将250µm光纤套入高模量材料制成的松套管中,松套管内填充防水化合物。缆芯的中心是一根非金属加强芯(FRP),对于某些芯数的光缆来说,非金属加强芯外还需挤上一层聚乙烯(PE)。松套管(和填充绳)围绕中心加强芯绞合成紧凑和圆形的缆芯,缆芯内的缝隙充以阻水填充物。缆芯外挤上一层聚乙烯内护套,双面涂塑钢带(PSP)纵包后挤制聚乙烯护套成缆。

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

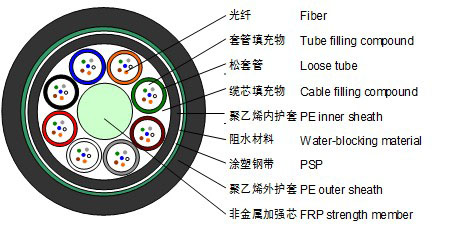

光缆结构图 Cable Structure

适用:管道、架空、直埋 Application: Duct / Aerial/Direct buried

产品特点 Characteristics

l、具有很好的机械性能和温度特性
Good mechanical and temperature performance

2、松套管材料本身具有良好的耐水解性能和较高的强度
High strength loose tube that is hydrolysis resistant

3、管内充以特种油膏,对光纤进行了关键性保护
Special tube filling compound ensure a critical protection of fiber

4、良好的抗压性和柔软性
Crush resistance and flexibility

5、采用下列措施来确保光缆的防水性能:
The following measures are taken to ensure the cable watertight:

1)单根非金属中心加强芯
Single Fiber Reinforced Plastic as the central strength member

2)松套管内填充特种防水化合物
Loose tube filling compound

3)完全缆芯填充
100% cable core filling

4)双面涂塑钢带(PSP)提高光缆的抗透潮能力
PSP enhancing moisture-proof

5)良好的阻水材料防止光缆纵向渗水
Water-blocking material

产品标准 Standards

GYFTY53光缆符合YD/T 901-2001和IEC 60794-1标准
GYFTY53 cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

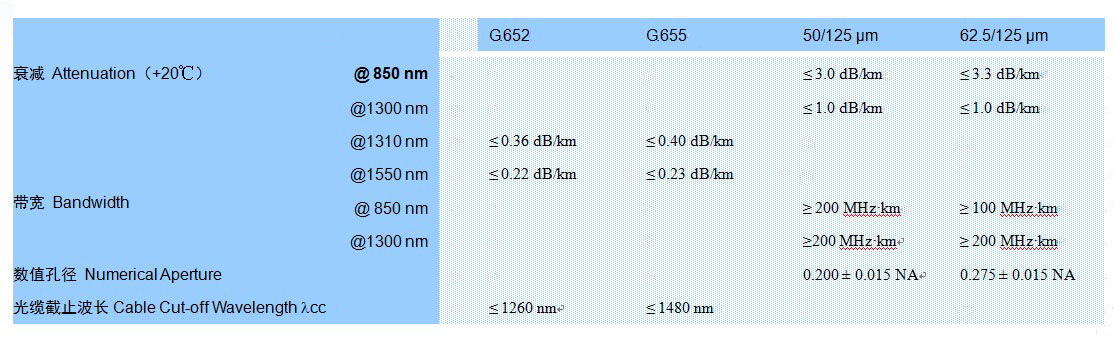

光学特性Optical Characteristics

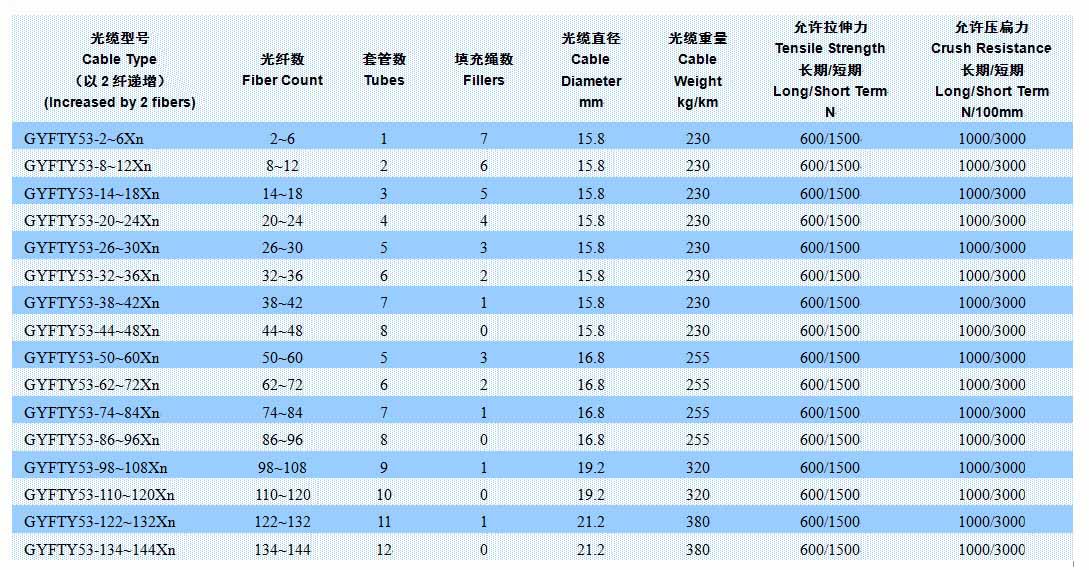

结构参数 Technical Parameters

备注:拉伸力在上表值与1KM缆重值中取较大值。Remark:The value of tensile strength on the table or 1KM cable weight whichever is greater.

储存、使用温度:-40℃至+70℃
Storage/Operating Temperature: -40℃ to +70℃

注Note:

a.型号的后缀Xn表示选用的光纤类型,详见天津长飞鑫茂光纤型号说明;
Suffix Xn denotes fiber type and see details in YOFC(TJ)’s cable illustration.

b.套管和光纤的颜色排列见色谱表;
The colour arrangements of fiber and tube are specified in the colour identification table.

c.聚乙烯外护套厚度最小值1.8mm, 内护套厚度最小值0.8mm,
The minimum value of the PE outer sheath thickness is 1.8mm; the minimum value of the PE inner sheath thickness is 0.8mm,

d.更多详细信息请垂询销售代表。
Need more detailed information, please consult the sales representative.
